PIC-DMK / PIC-DMP / PIC-DRI

In-ceiling Detector Mount Kit

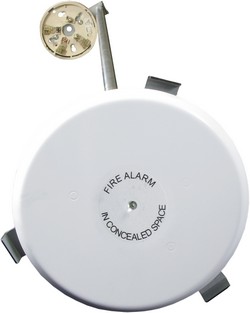

The Pertronic In-Ceiling Detector Mount Kit and In-Ceiling Detector Mount Pole together provide a convenient method to allow detector installation in above-ceiling locations.
The kit has four main parts: Cover Plate, Pole Base, Ceiling Bracket and Detector Mounting Bracket.
A universal detector base bracket allows the user to mount a base from most detector manufacturers. Either conventional or analogue addressable detectors may be used with their respective bases.
An optional Remote LED Indicator (PIC-DRI) (supplied separately) attaches to the pole base and is wired to the detector inside the concealed ceiling area. The PIC-DRI circuit board can be wired for optional current limiting resistance values, to suit the detector’s remote LED output.

Features:

• Allows detector mounting height up to 3 metres
• One metre poles must be ordered separately
• Universal detector mount bracket compatible with analogue addressable or conventional detector bases
• Kit includes spanner for pole nuts
• Optional remote LED indicator fixes to the pole base fitting
• Pole base fitting locks tightly into ceiling bracket
• Spring clips allow cover plate to easily snap to pole base
• Optional labels supplied with kit:
• FIRE ALARM label for use with a remote indicator;
• FIRE DETECTOR label for use if a remote indicator is not used
