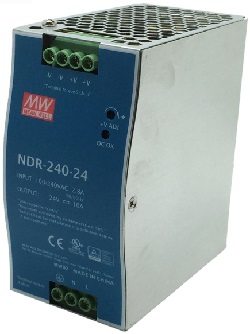

NDR-240-24

24 Volt 10 Amp DIN Rail Power Supply

PSNDR-240-24

The 24 Vdc DIN rail power supply (PSNDR-240-24) is recommended for electromagnetic door holders. It is also suitable for general applications in which neither power supply supervision nor battery backup are required.

This power supply unit must be installed inside a cabinet to prevent accidental contact with exposed terminals.

Features

  • Power on LED indicator
  • Protection: Short circuit / Over load / Over voltage / Over temperature
  • Universal input voltage range: 90 Vac to 264 Vac
  • Output voltage 24 Vdc
  • Current: Up to 10 Amps
  • Free air convection cooling
  • Fits TS-35 / 7.5 or  TS-35 / 15 DIN rail
  • UL 508 (industrial control equipment) approved
  • 100% full load burn-in test

Ordering Information

Product Code

Description

PSNDR-240-24

Power Supply, DIN Rail Mounting, 230 Vac to 24 Vdc @ 10A


Documents

Datasheet
